Brand Name : HICORPWELL

Model Number : 5000w Off Grid Solar System

Certification : IEC

Place of Origin : China

MOQ : 1000W

Price : negotiation

Payment Terms : Western Union, L/C, T/T

Supply Ability : 1000KW　Per Month

Delivery Time : 25 working days

Packaging Details : Poly 260W solar panel Size:1640*990*40mm Weight:20Kgs

Name : 5000w Off Grid Solar System

Rated Power : 5KW

Color : blue

Solar panel rack : flat ground and roof for optional

output wave : pure sine wave solar system

Output frequency : 50HZ/60HZ

Output Voltage (V) : 110V/220V

Application : Home

Solar system Inverter : Inverter With MPPT Controller Bui

Power Type : Off-grid

Contact Now

Home Solar Power Roof Mounting System Residential Solar Smart Power Application


Product Features:

1. Off-grid system is mainly used for big solar power system users who wants to sell electricity to the government.

2. There has to be existing grid network. There is no need of battery bank for this system.

3. All the electricity generated from the solar panel will be supplied to the user’s house or

business as a priority, and the excess electricity will be fed back into the electric utility grid.

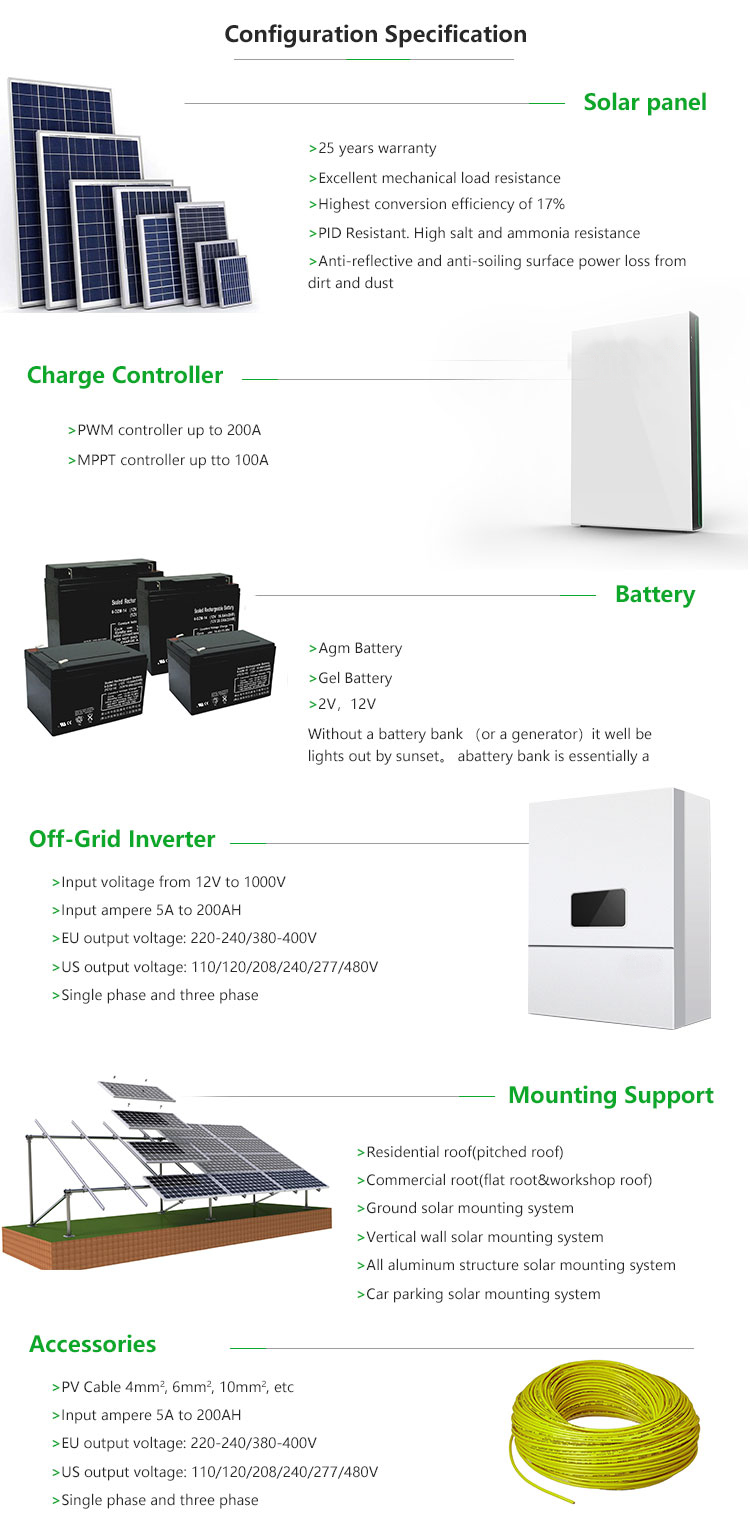

Specifications:

Ref No.OFF--5KW
System Basic InformationSolar Panel Rated Output Power5KW
Suitable for Max Daily Power Consumption20KWH
Rated Output AC Capacity5KW
Solar panel
TypeCrystalline Silicon PV Module, A-class20pcs
Max Power250W
Vmp30.5V
Size1655*992*45mm
Weight22.5kg/pc
25 years power output guarantee (Note: 2pcs panels connect in series)
Controller
Voltage12V/24V1pc
Current80A
Warranty1 year
PWM high-efficiency charging controller, LED display, intelligent control; Temperature compensation, various protections.
Circuit BreakerUsed for protection of controller, installed between PV array combiner and controller1pc
Inverter
Input VoltageDC48V1set
Output VoltageAC220V/110V 1-phase
Frequency50/60Hz
Efficiency90%
Note: This inverter provides grid power switch and battery charging functions.
Battery
Capacities12V/200AH per piece12pcs
Service life5 to 6 years
Warranty3 years
Solar panel rackFlat-roof type mounting rack, steel material, anti-rust treatment(Other types of racks can be customized as per client's requirement)1 set
Cable

30m
